Bag filter

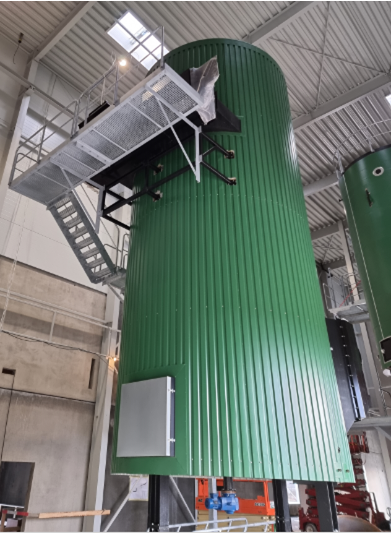

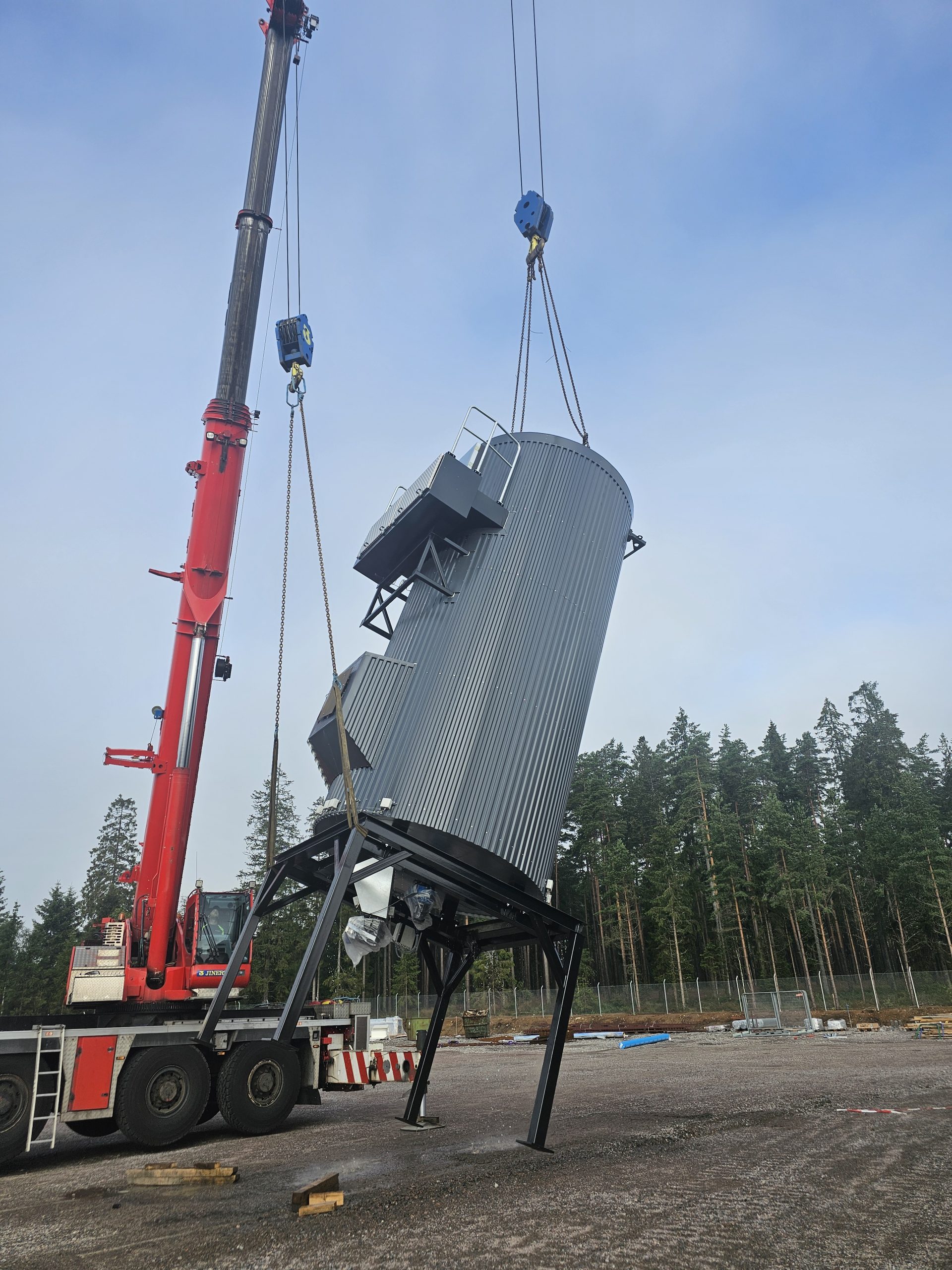

Bag filters are used in biomass and waste burning systems. High-quality filters ensure efficient and effective cleaning of flue gases generated in the combustion process. Safe and efficient flue gas cleaning process is based on the capturing particulate matter and solids on the bags fabric surface. To avoid residual dust build-up on the fabric surface, compressed streams of high pressure air are used to remove particulate matter within certain time intervals. During the cleaning, solids are dislodged and collected on the filter bottom, from where they are moved into the hopper by means of a rotating scraper arm to be finally removed from the filter into the conveyor and dust collector. Heated floor keeps the temperature inside the filter above the dew point, which ensures long-term operation of the filter.

Advantages:

  • minimal air consumption
  • filter bags protected against moisture and harmful gases
  • insulation and heated floor
  • cleaning bags with compressed air
  • flue gas cleaning of dust and solid particles at the level of 5 to 50 mg/Nm3
Fuel Flue gas temperatureFilter loading rate m3 / m2/ h.
Dry straw120 CMax. 25
Pellets – 10% moisture content 120 C-180 CMax. 35
Wood chips up to 45% moisture content 120 C-180 CMax.35
Malt up to 45% moisture conten120 C-180 CMax. 30
