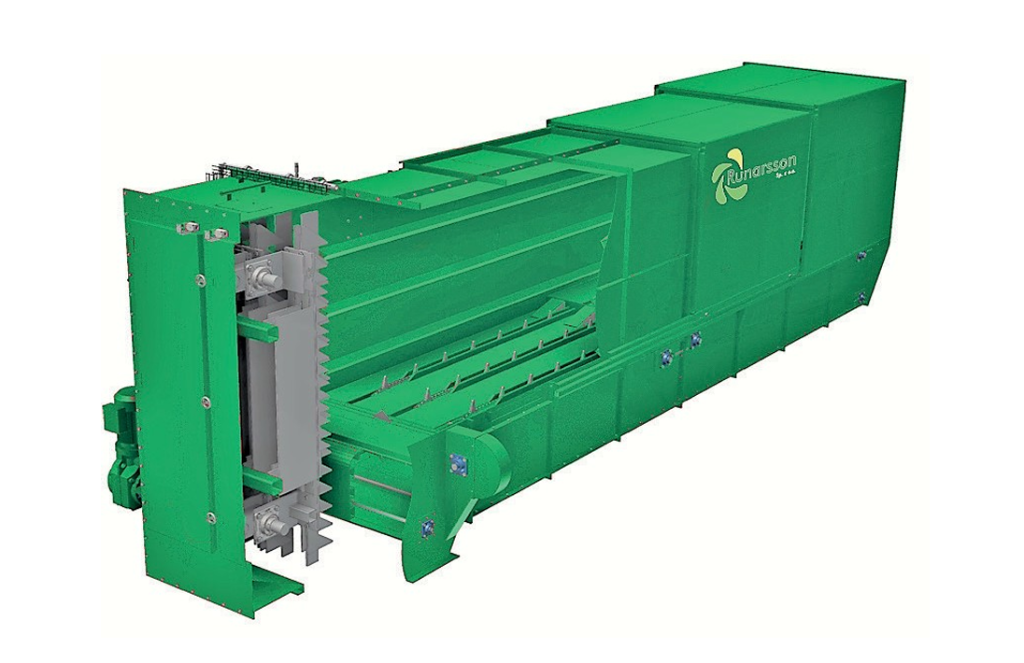

Straw divider

A key component in a straw bale feeding system for combustion plants is the straw divider. It receives the bales from the storage and loosens it up before sending it further towards the pushfeeder or stoker screws. This robust machine is designed to loosen the straw instead of shredding it, thus saving a lot of energy and wear on the machine. By ensuring an even and stable straw flow, the machine contributes to high combustion efficiency and reliable boiler operation. The straw divider is equipped with an automatic self-cleaning system that minimizes downtime and maintenance. An integrated smoke detection system with sprinklers is activated automatically in case of backfire further down in the system, significantly reducing the risk of fire and protecting both equipment and installation. Consistent and uniform fuel supply improves operational stability and maximizes the overall efficiency of the straw-fired boiler plant.

KEY FEATURES

• Low energy consumption
• Integrated fire protection system with automatic sprinkler activation
• Tight fire protection lock preventing flame backflow
• Automatic self-cleaning function for reduced maintenance
• Minimal sharpening and replacement of shredder teeth required
• Reliable and even straw feeding leading to stable combustion
TECHNICAL DATA
Length 8-9 metre
Width 1,7 metre
Weight: 9 tonnes
Capacity Up to 5 t/h
Big Bale (Heston-bale) Medi-Big Bale
Weight: 400-600 kg300-600 kg
Width 1000 – 1.250 mm1000 – 1250 mm
Height 1250 -1300 mm850 – 950 mm
Length 2250 – 2550 mm 2250 – 2550 mm
